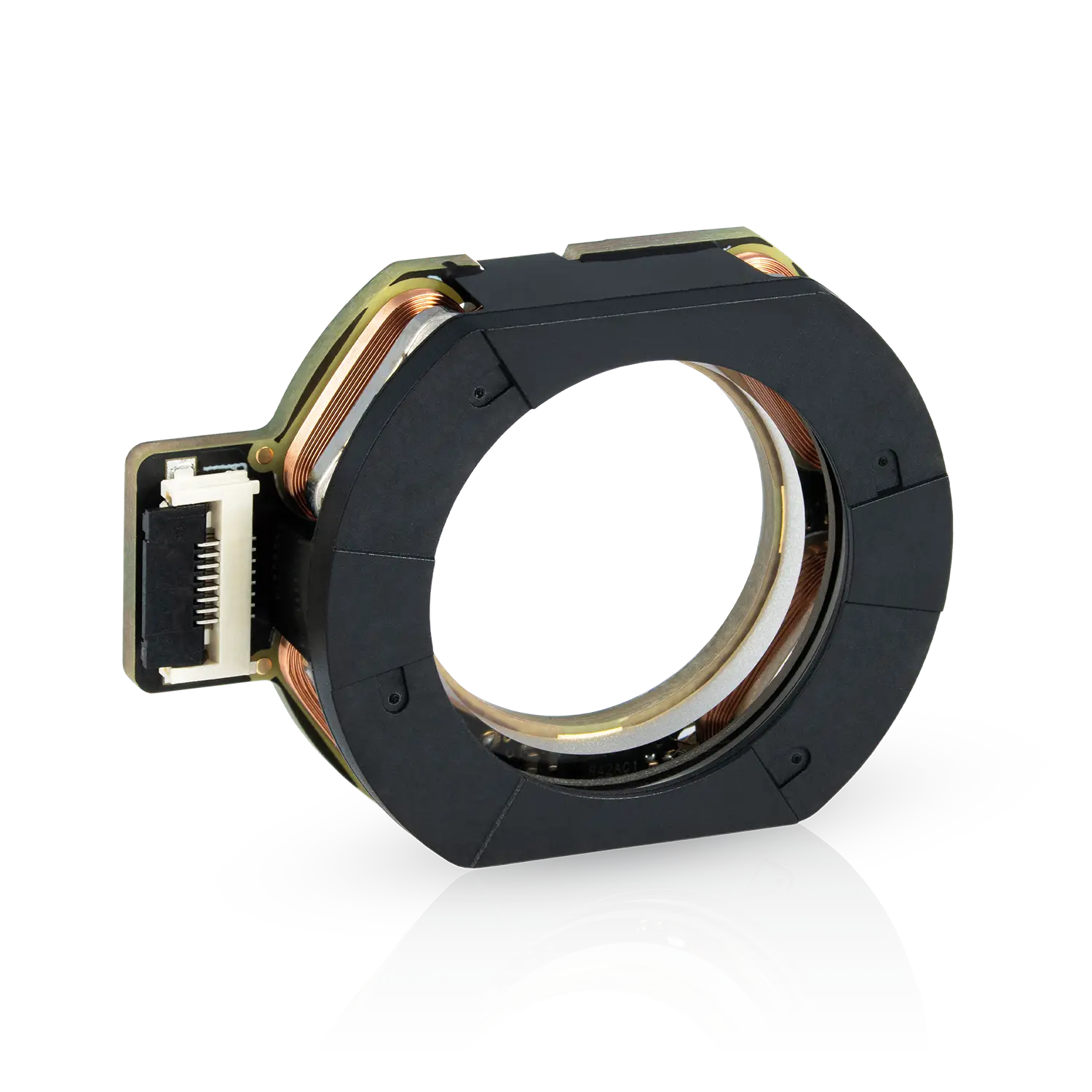

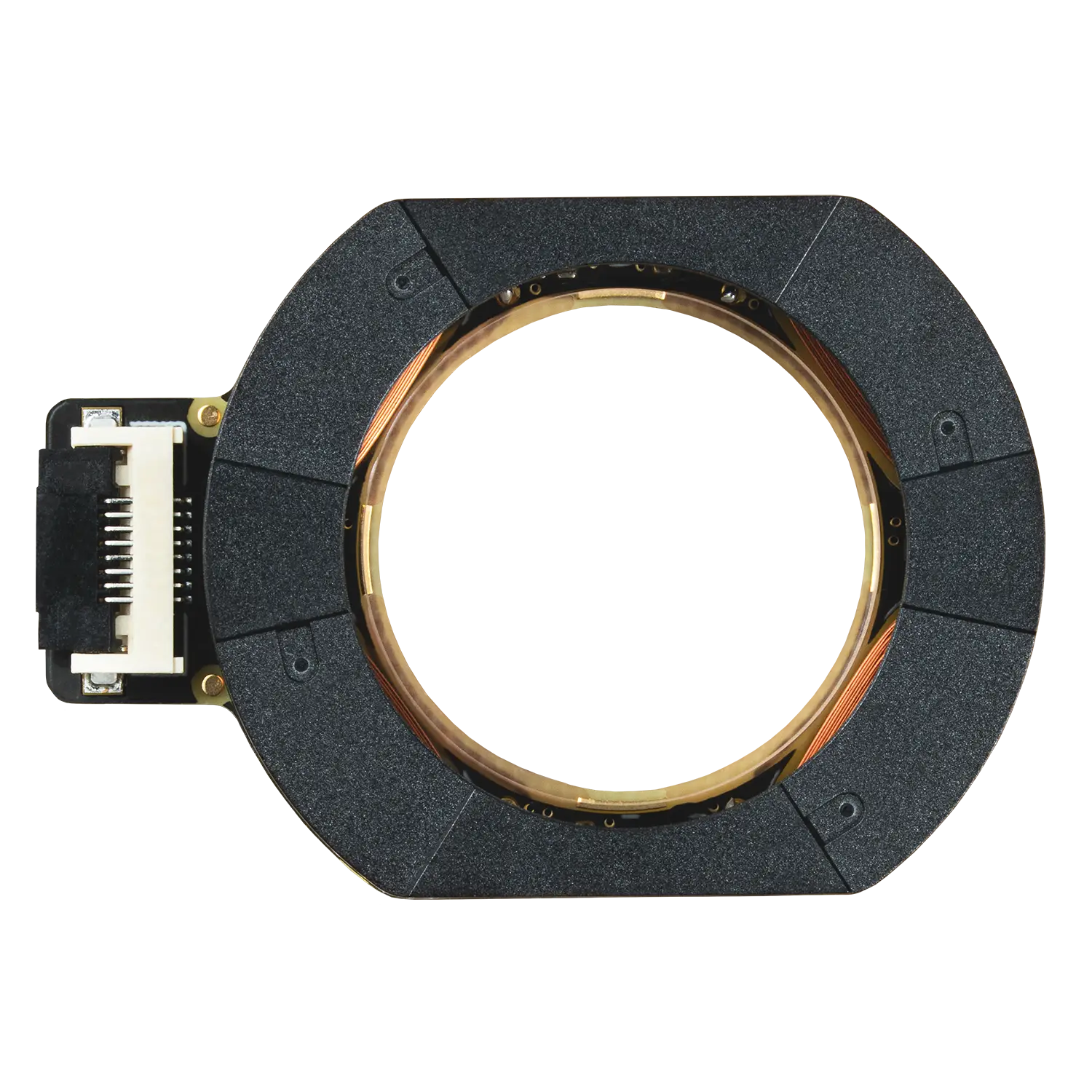

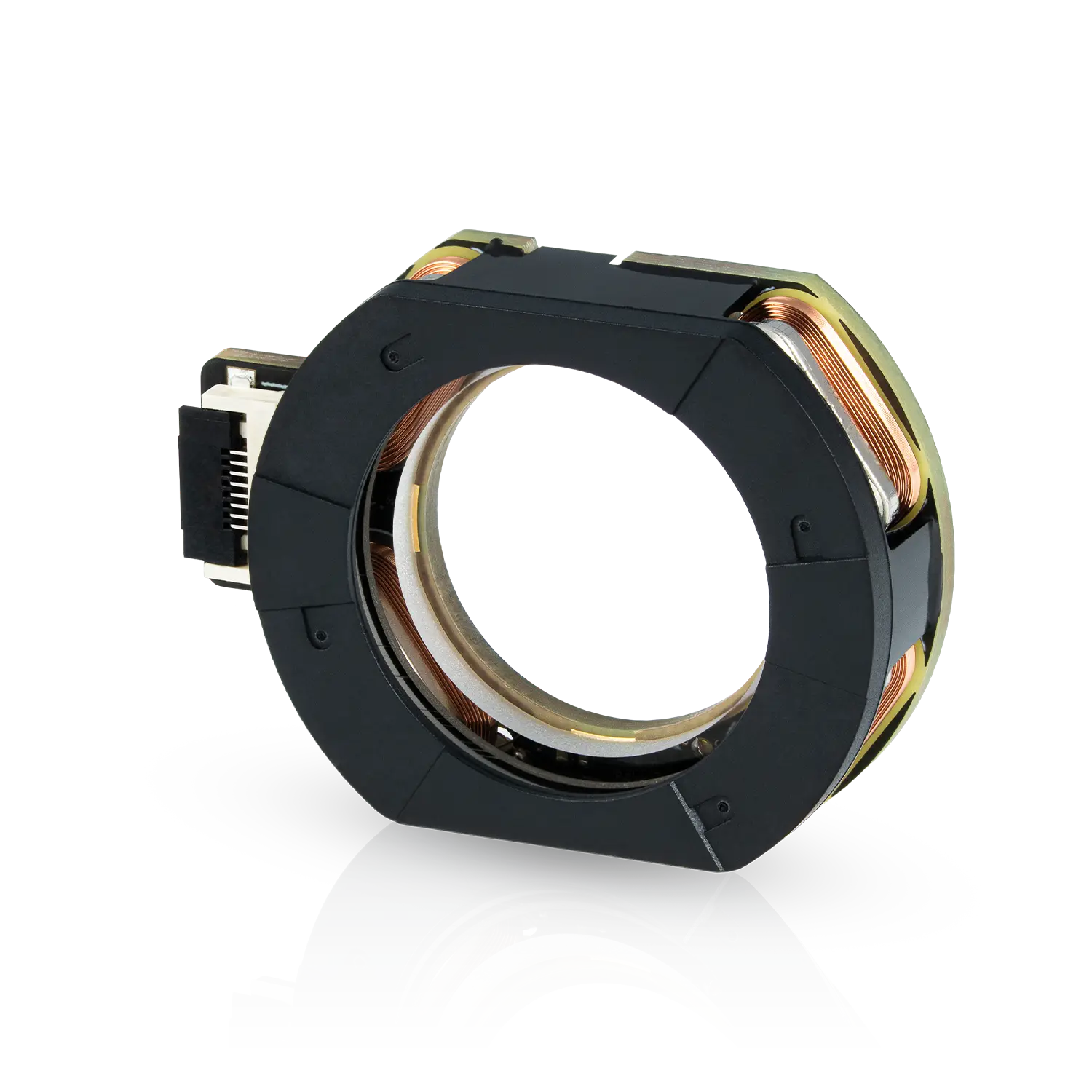

TP-17-25
Optotune’s TP-17-25 provides precise transmissive beam steering by dynamically adjusting the relative tilt of two optical windows enclosing a high-performance optical fluid. It is particularly suited for optical image stabilization (OIS), where fast and precise adjustment of the optical path is required.
With its large clear aperture, high optical tilt range, and dynamic actuation, the TP-17-25 offers strong performance in compact optical systems. Its smooth and quiet operation also supports a more stable and comfortable user experience, especially in handheld devices.
Main specifications:
Clear aperture: 17 mm
Width: 25 mm
Max. Optical tilt: 1°
Wavelength range: 420 – 980 nm
Full scale bandwidth: 7Â Hz
Weight: 12 g
Operating temperature: -10 to +65°C
This product has multiple versions.
The best quality possible
Configurations
We offer the TP-17-25 with standard optical performance, which is suitable for most applications. Yet, if you find that some parameters do not match your desired values, please contact us at sales@optotune.com and we are happy to assist you further.Applications
The TP-17-25 is the ideal choice for rangefinders and binoculars.| Product name | Clear aperture (mm) | Max. optical tilt (°) | Full scale BW (Hz) | Packaging | hf:tax:clear-aperature-mm | hf:tax:tax-tilt-angle | hf:tax:tax-full-scale-bw-hz | hf:tax:pa_atr-packaging |
|---|---|---|---|---|---|---|---|---|
| TP-17-25-VIS-1D | 17 | 1 | 7 | Single unit in box​ | 17 | 1 | 7 | single-unit-in-box |
| TP-17-25-VIS-1D (Tray)​ | 17 | 1 | 7 | Tray | 17 | 1 | 7 | tray |
